Powder Making Plant

Powder Making Plant

Powder making plant or powder productionline is mainly used for powder grinding of non-flammable and non-explosivemineral powder materials, such as feldspar, calcite, talc, barite, fluorite,rare earth, marble, ceramic, bauxite, manganese ore, phosphate rock, iron oxidered, activated carbon, quartz sand, cement clinker, clay, coal gangue, gypsum,silicon carbide, refractory materials and other materials with smaller than 8 level of Mohs hardness and 6% of humidity.

Email: info@sinoftm.com ( We will contact with you in 15 minutes)
Tip: If you haven't found a suitable machine, you can also leave us a message or chat with our online customer services, we can customize proper solution or recommend suitable machines for you according to your requirements.
  • Overview
  • Technical data

Powder making plant is widely used inmining, electric powder, chemical industry, building materials, metallurgy,refractory materials, power plant desulfurization, asphalt mixing station,expressway, etc. Its particle sizes of finished products can be freely adjustedbetween 20 to 3250mesh.

Configuration of Powder Making Plant

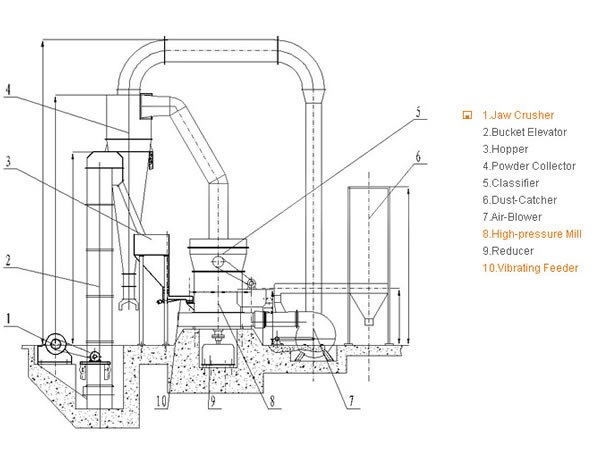

Powder making line is generally composedof jaw crusher, bucket elevator, electromagnetic vibrating feeder, grindingmill, analyzer (powder concentrator), auxiliary machinery, draught fan,centralized electronic control, etc.

Powder Making Plant

According to different needs of customers,powder grinding plant can be equipped with high-strength grinding mill, highpressure grinding mill, Raymond mill, Tricyclic medium-speed micro powder mill,vertical mill, super fine mill, micro powder mill, etc. Fote powder makingplant not only has the advantages of wide selection, reasonable layout,reliable quality, high cost performance, etc, but can provide, overall designand construction scheme of grinding operation.

Production Process of Powder Making Plant

Powder Making Plant

When working, bulk materials are firstly crushedby jaw crusher to appropriate sizes suitable for grinding machine, then beingsent to stock bin through bucket elevator; the vibrating feeder at the bottomof the stock bin evenly sends materials to grinding machine; after beingground, the fine powder that conforms to requirements of particle sizes enters powderconcentrator through analyzer and becomes finished products after beingdischarged through discharge valve at the bottom of powder concentrator. Coarsepowder that cannot meet the requirements of particle sizes will be back togrinding chamber for regrinding.
